Solar Engines Model 1 Stirling Cycle Engine, Serial No. 4629, c. 1977

The Stirling engine is one of the quietest and most elegant heat engines ever built — no explosions, no spark, no exhaust. A temperature difference alone drives the cycle: hot gas expands, pushes the piston, transfers to the cool end, contracts, and begins again. Robert Stirling patented the principle in 1817, and for most of the nineteenth century it powered everything from water pumps to factory machinery before gasoline made it obsolete. By the 1970s, as the energy crisis sharpened interest in solar and alternative power, a small Phoenix, Arizona company called Thermal Energy Engines — marketing under the Solar Engines trade name — decided to bring it back as a working demonstration model for hobbyists, engineers, and collectors.

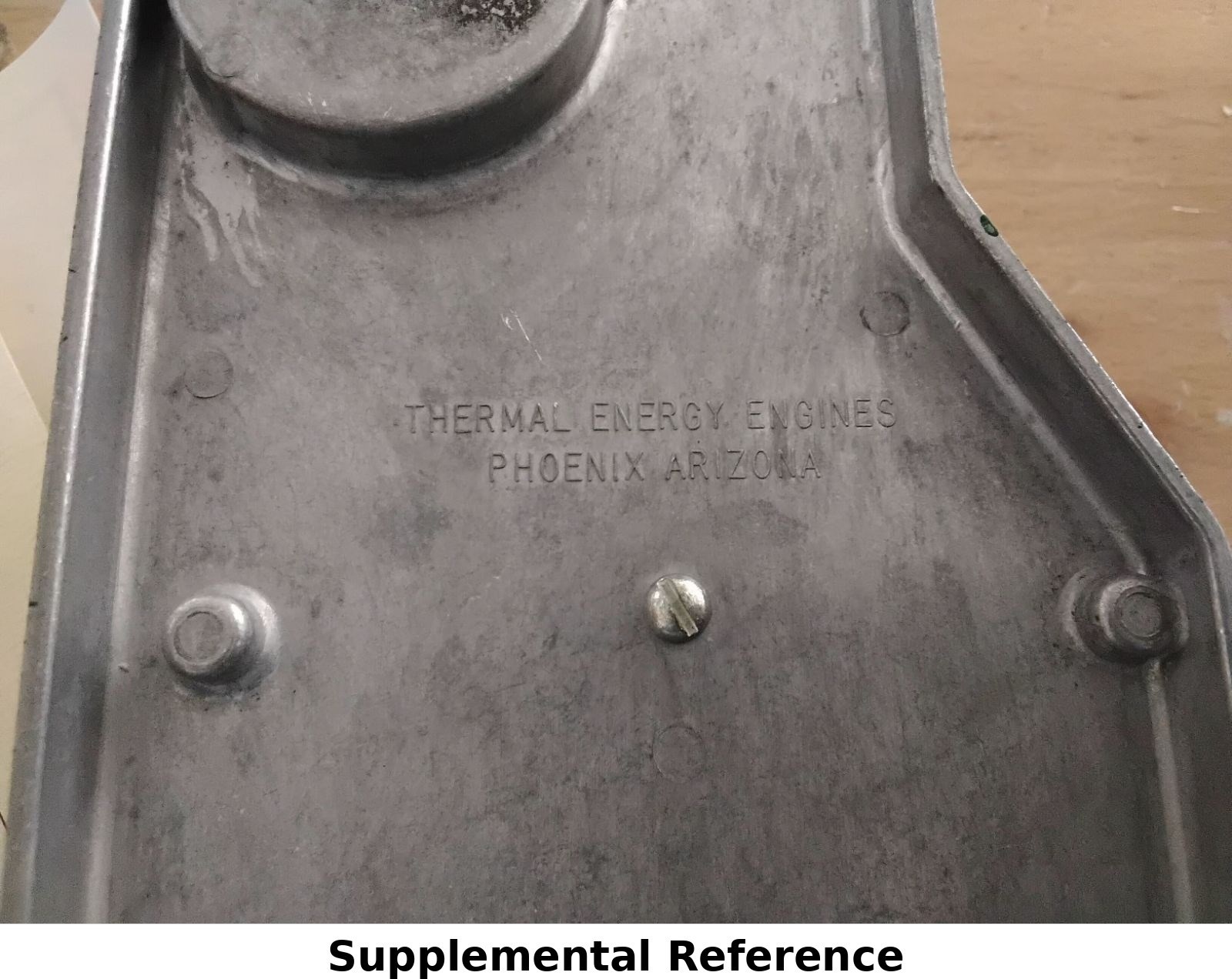

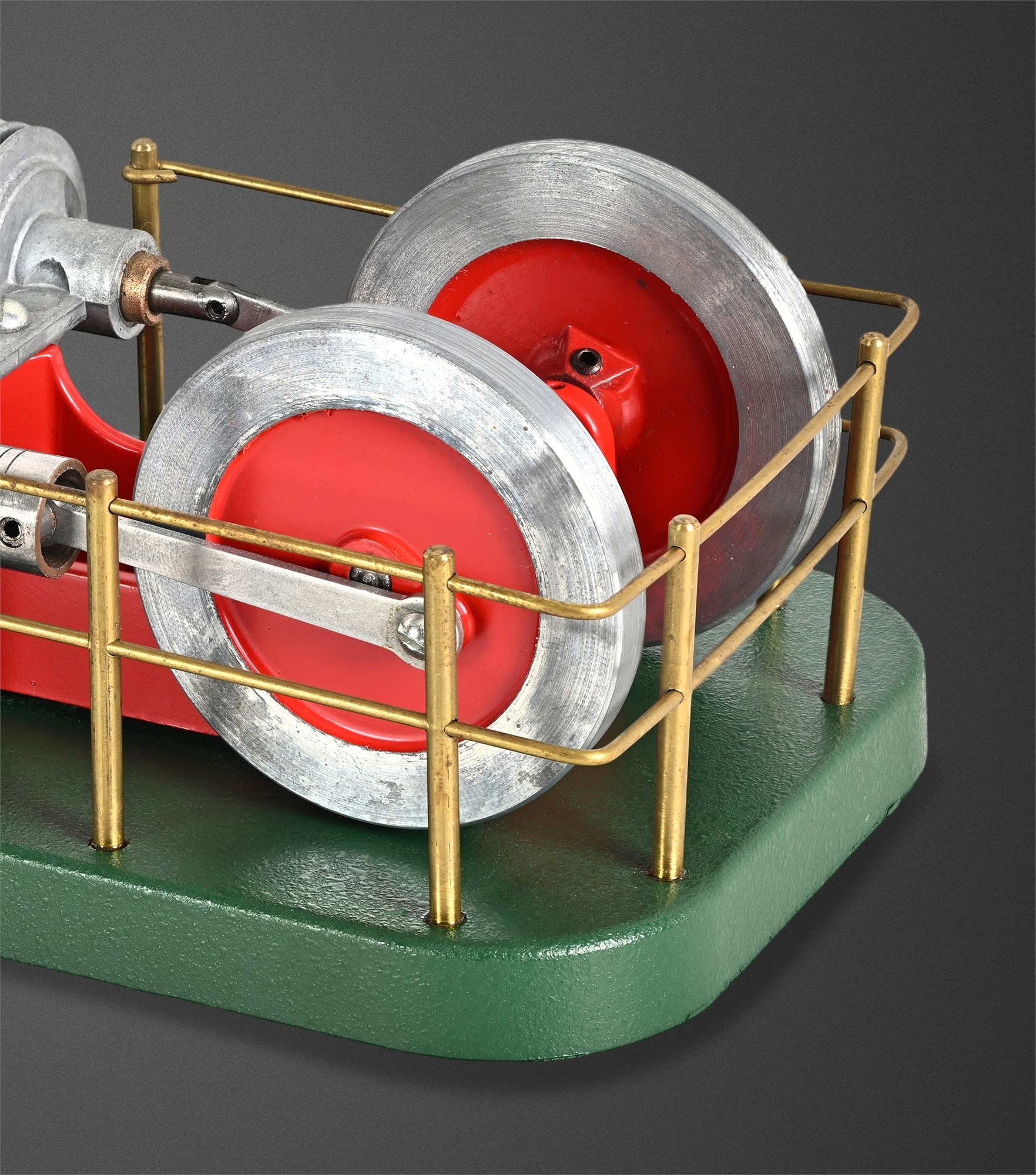

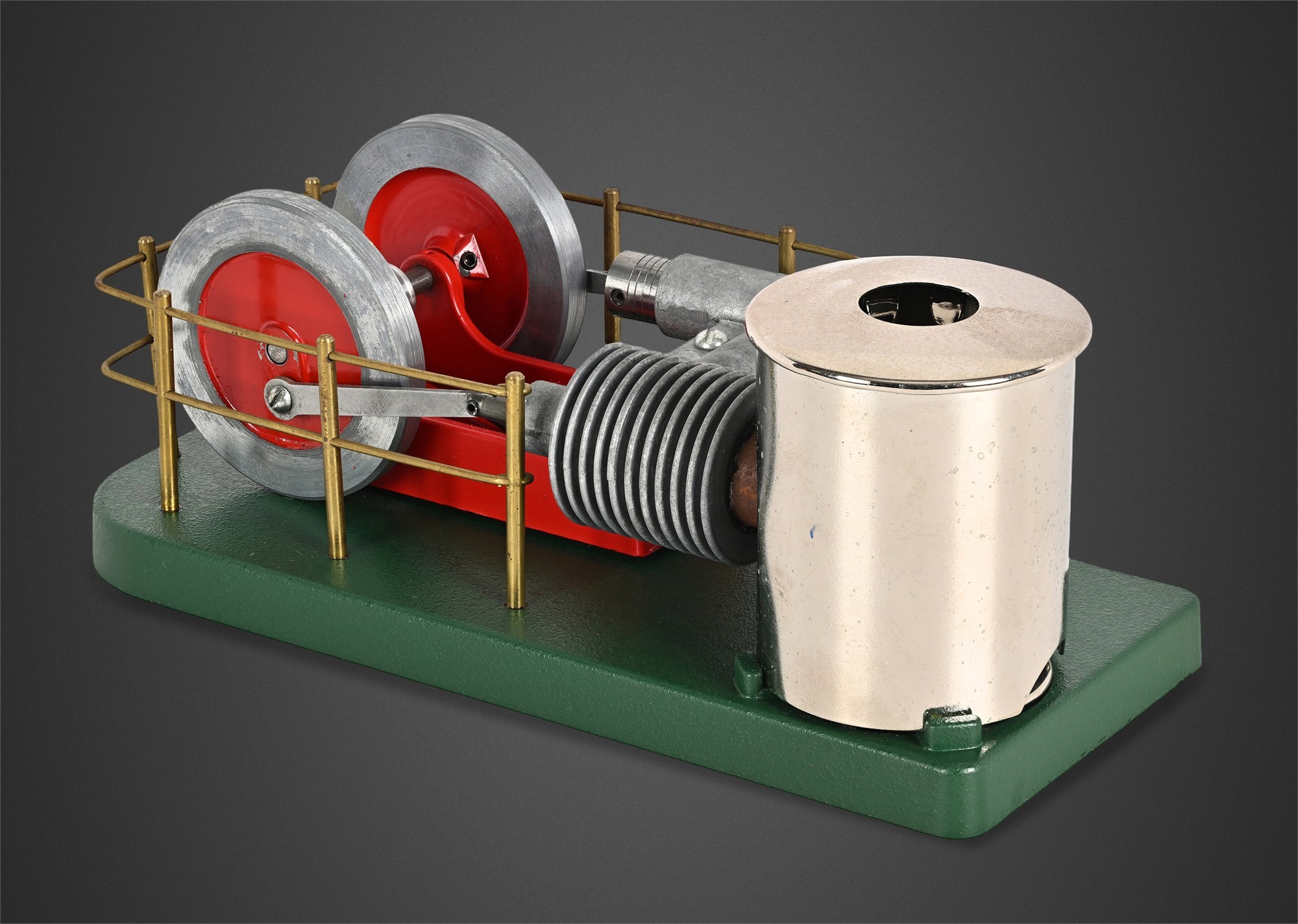

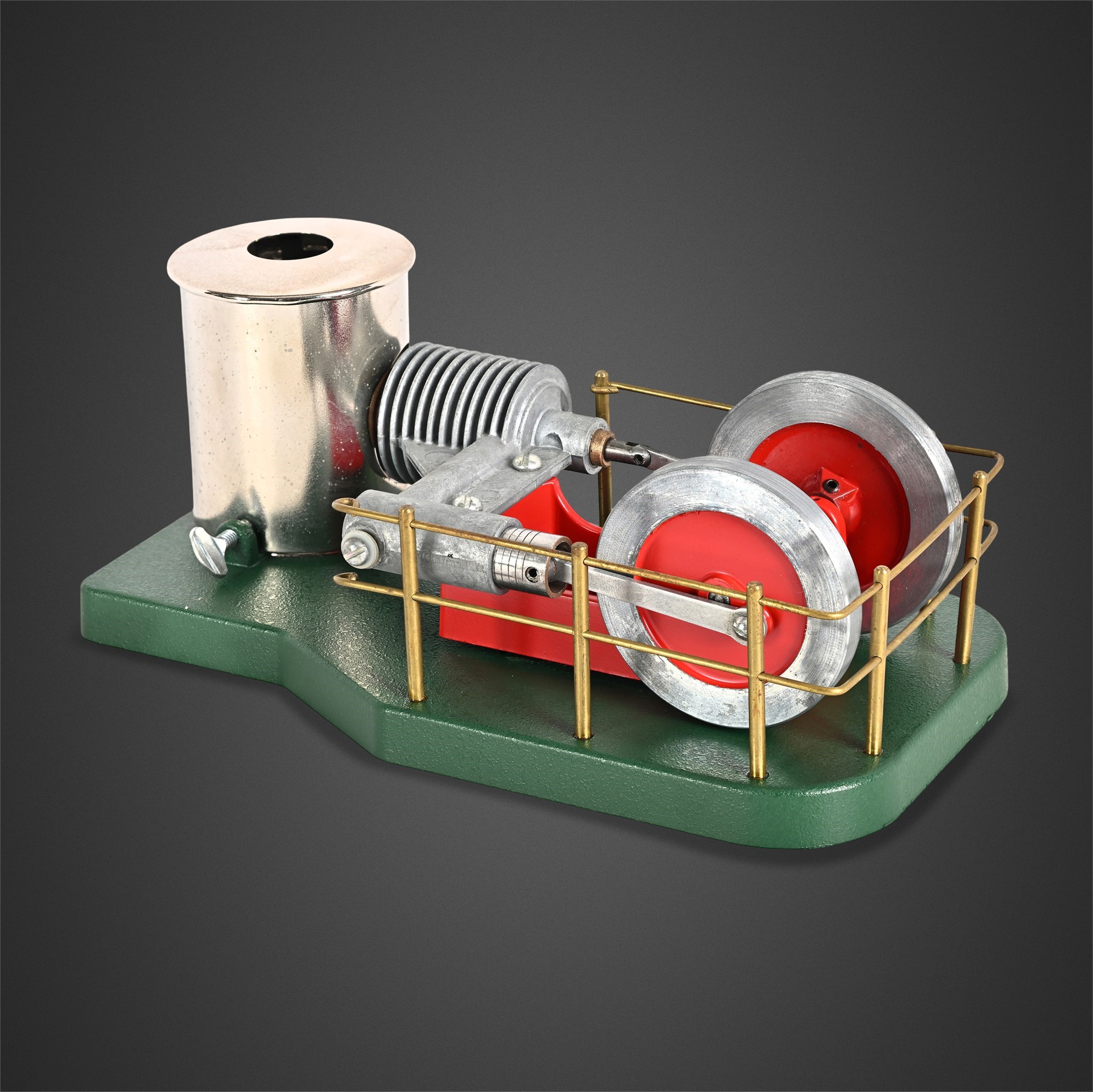

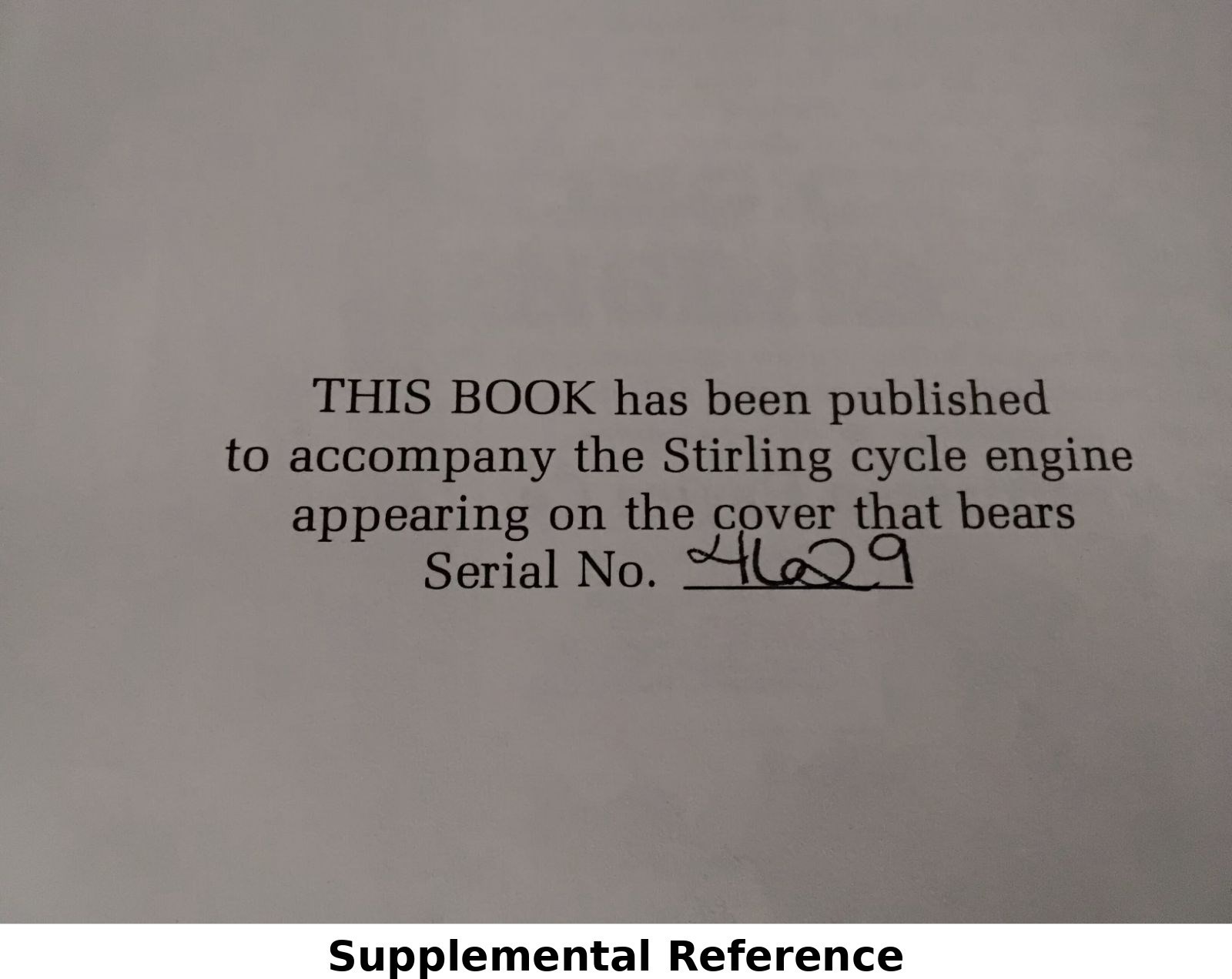

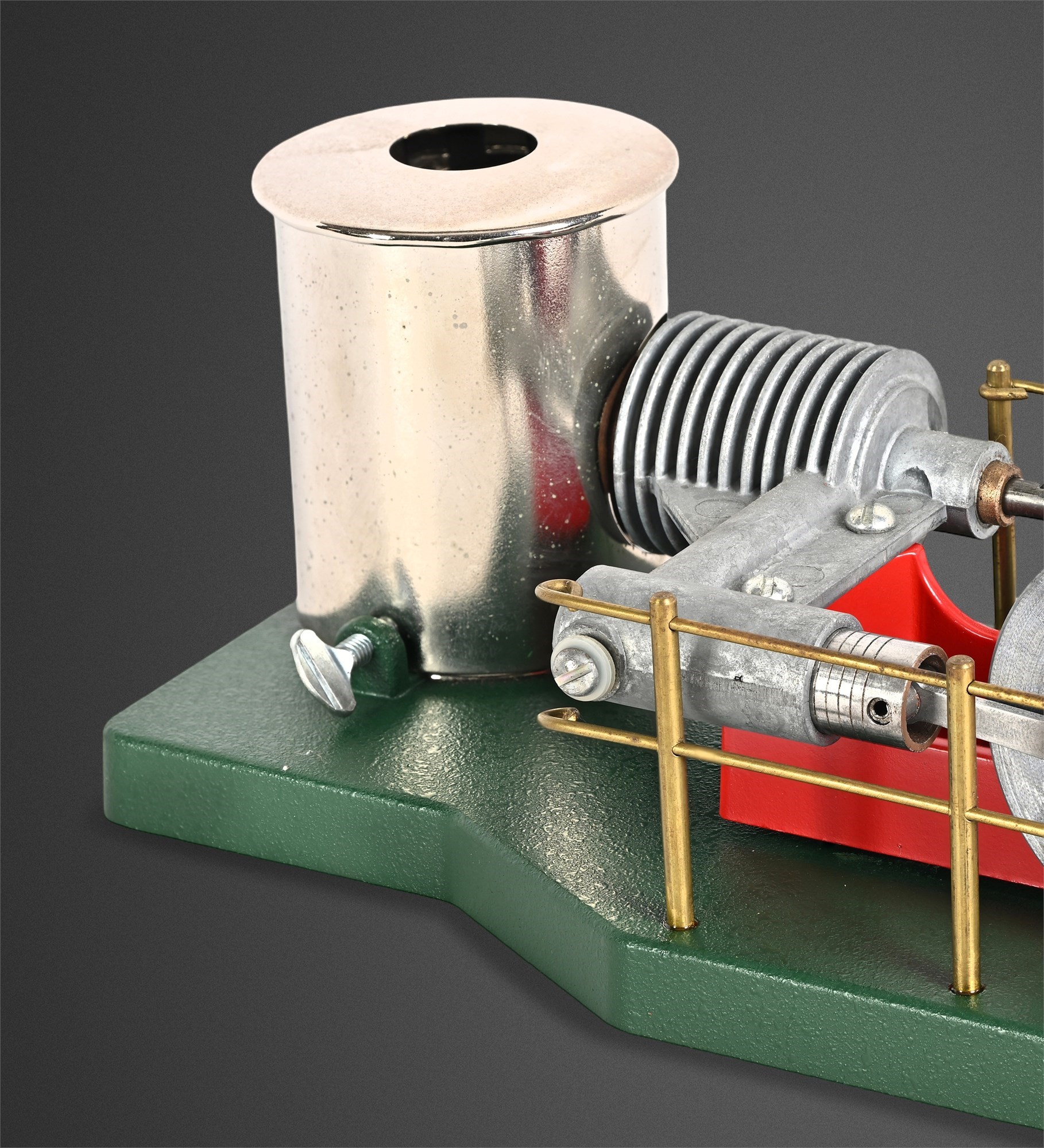

This is their Model 1, the first in a planned series, produced during the 1817–1977 Stirling centennial year. All-metal construction throughout: a cast and painted green base stamped THERMAL ENERGY ENGINES / PHOENIX ARIZONA on the underside, a finned aluminum cylinder, polished chrome-steel burner cup, paired red-painted aluminum flywheels with machined silver rims, and a brass safety rail encircling the running gear. The engine runs on any applied heat source — the built-in alcohol burner cup is standard; the company noted a parabolic solar mirror as an optional attachment. Speed ranges to 1,000 RPM. The lot includes the companion book — Stirling Cycle Engines by Andy Ross, 128 pages — and the original Model 1 Owner's Manual. The book's interior page reads: "THIS BOOK has been published to accompany the Stirling cycle engine appearing on the cover that bears Serial No. 4629," hand-inscribed, tying this specific engine and book together as an original matched pair.

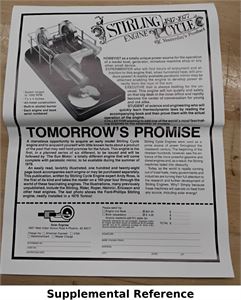

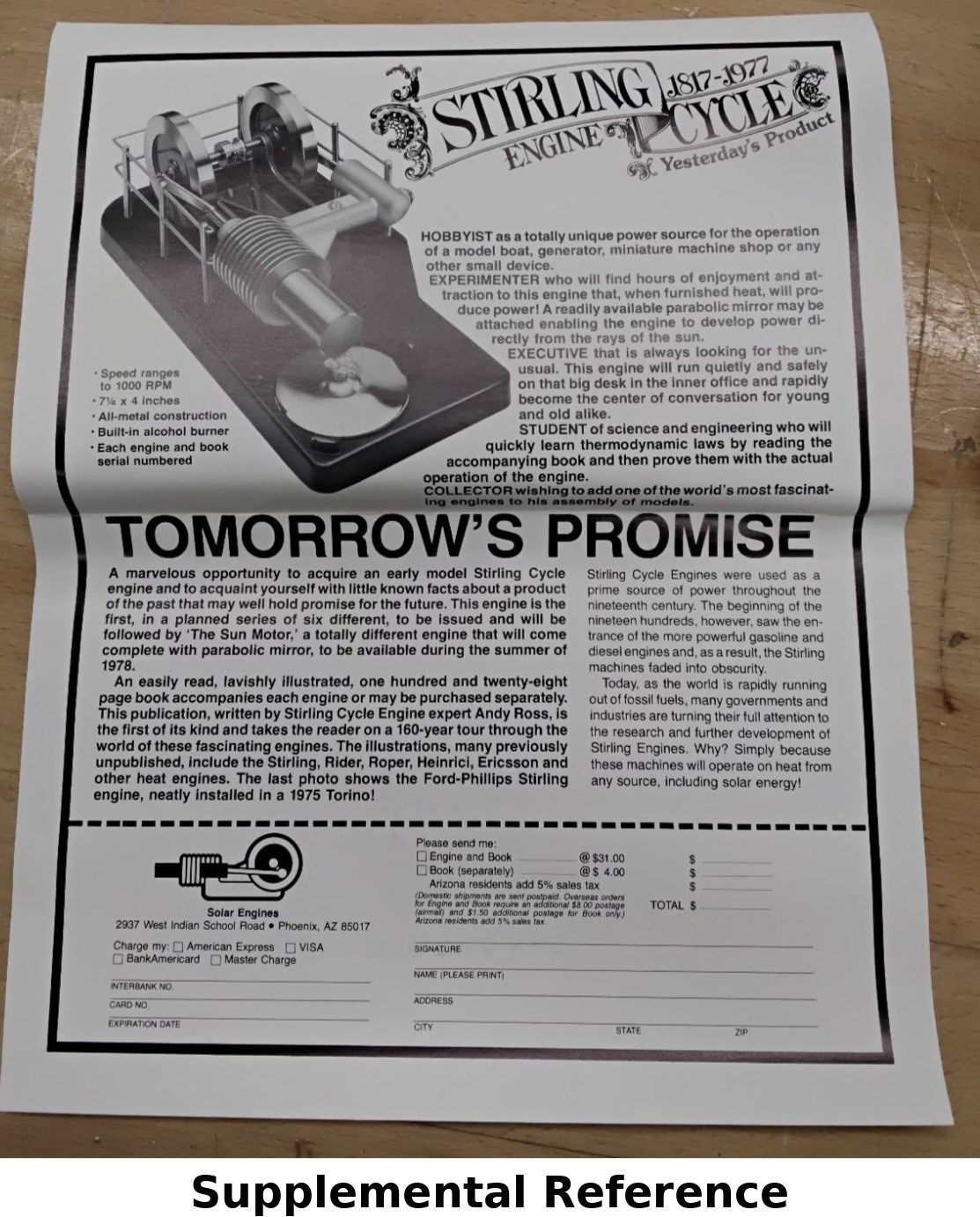

The Stirling engine's commercial revival in the 1970s was driven in part by the oil embargo and growing interest in solar thermal energy. Solar Engines of Phoenix positioned their Model 1 squarely at the intersection of that moment: a functional, desktop-scale demonstration that could run on a candle flame, an alcohol burner, or — with the optional parabolic mirror — direct sunlight. The accompanying book by Andy Ross, then one of the foremost American popularizers of Stirling technology, gave the product an educational dimension unusual for a hobbyist engine of the period. Ross went on to publish further work on Stirling design through the 1980s and 1990s, and his name remains well-regarded in the small-engine and alternative-energy collector community. The brochure included with this lot — a broadside order form headlined "Tomorrow's Promise" — captures the optimistic energy-alternatives climate of 1977 in full.

• Stirling Cycle Engines by Andy Ross — 128-page companion book, serial-matched to engine No. 4629
• Original Model 1 Owner's Manual
• Original "Tomorrow's Promise" brochure / order form, Solar Engines, Phoenix AZ

CONDITION

Very Good to Excellent — New Open Box. The engine shows no meaningful use wear; the burner cup and chrome surfaces retain their original luster with only light handling marks. Paint on the base and flywheels is crisp with no chips noted. The brass safety rail is straight and intact. Companion book and manual are present and in good readable condition.

DIMENSIONS / SPECIFICATIONS

• Overall: 4¼" H × 7½" W × 3" D
• Speed: Up to 1,000 RPM
• Fuel: Alcohol burner (built-in); solar mirror compatible
• Construction: All-metal — cast aluminum base, finned aluminum cylinder, chrome-steel burner cup, aluminum flywheels, brass safety rail
• Maker: Thermal Energy Engines / Solar Engines, Phoenix, Arizona
• Model: Model 1 (first in planned series of six)
• Serial No.: 4629
• Production period: c. 1977 (Stirling 1817–1977 centennial edition)
