Pioneer A-8 Non-Switching Stereo Integrated Amplifier, Champagne Gold

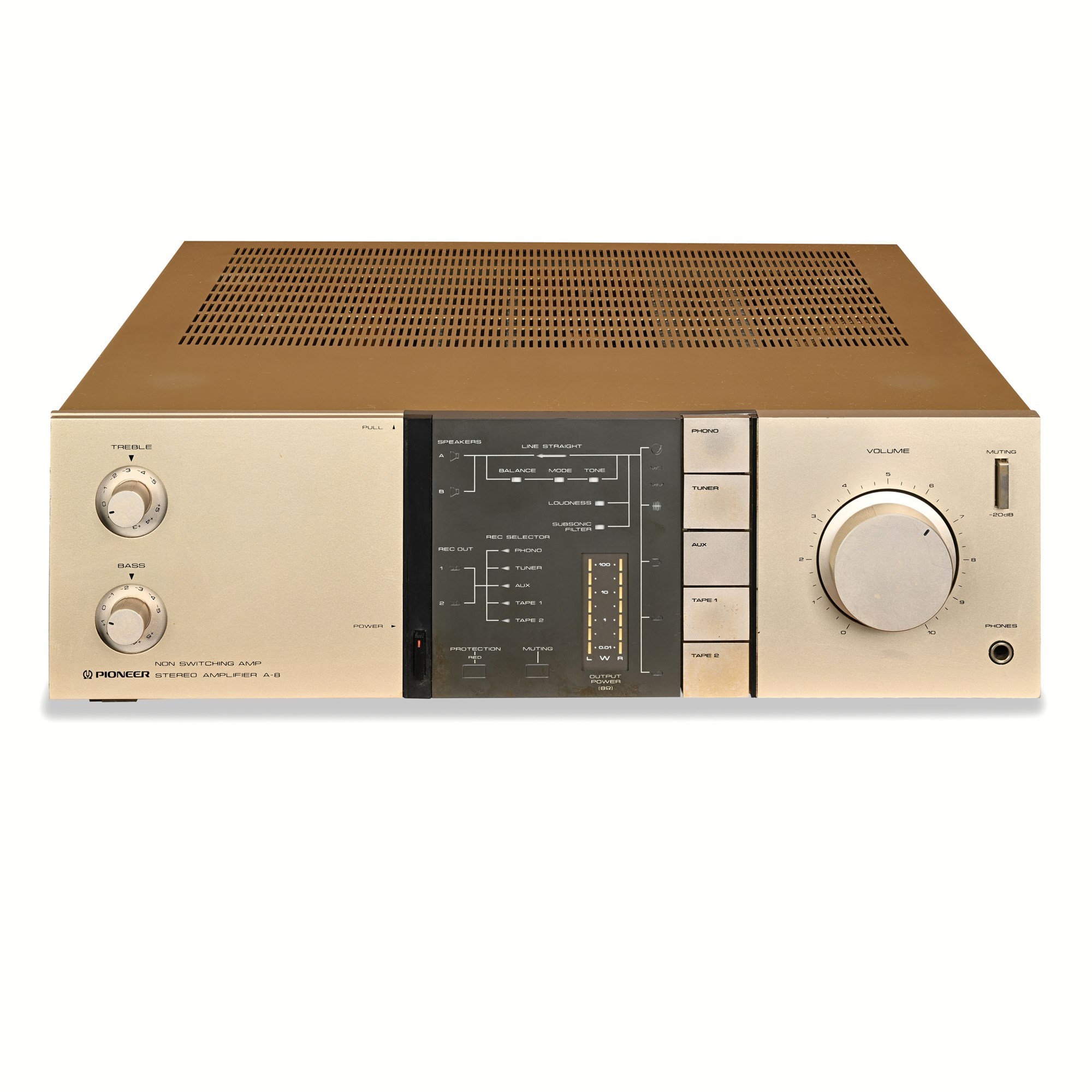

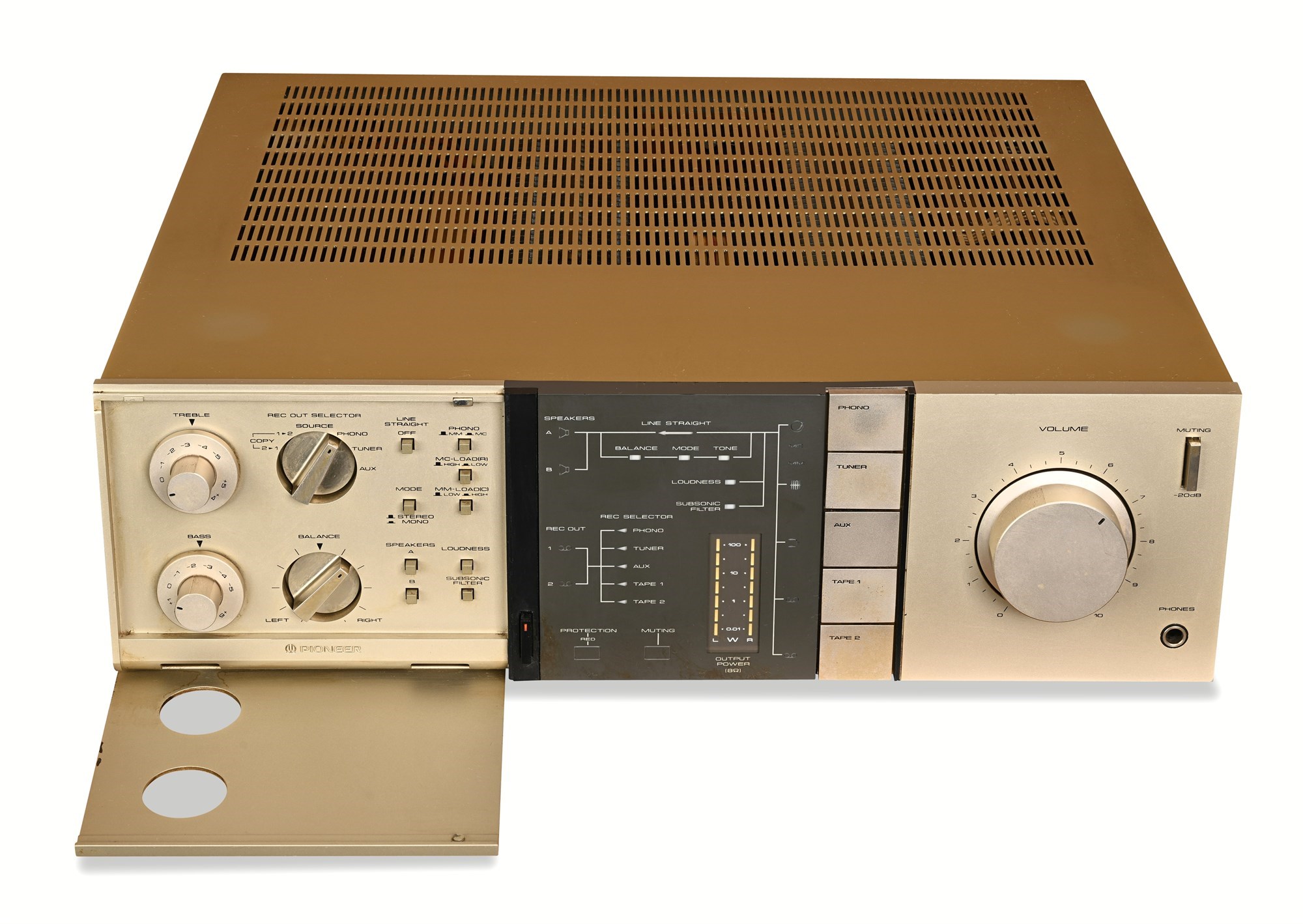

The Pioneer A-8 is an integrated stereo amplifier from Pioneer's early-1980s champagne-gold era, built around the company's Non-Switching amplifier topology — a design intended to eliminate switching distortion by keeping the output devices continuously conducting across the full audio cycle. The full-width faceplate carries dedicated Treble and Bass knobs, a large center Volume dial, push-button source selection for Phono, Tuner, Aux, Tape 1, and Tape 2, plus a Muting (−20dB) switch and a front-panel headphone jack. A hinged flip-down panel conceals a secondary control cluster: Rec Out Selector, phono MM/MC loading (High/Low for each), Mode (Stereo/Mono), Speaker A/B, Loudness, and Subsonic Filter.

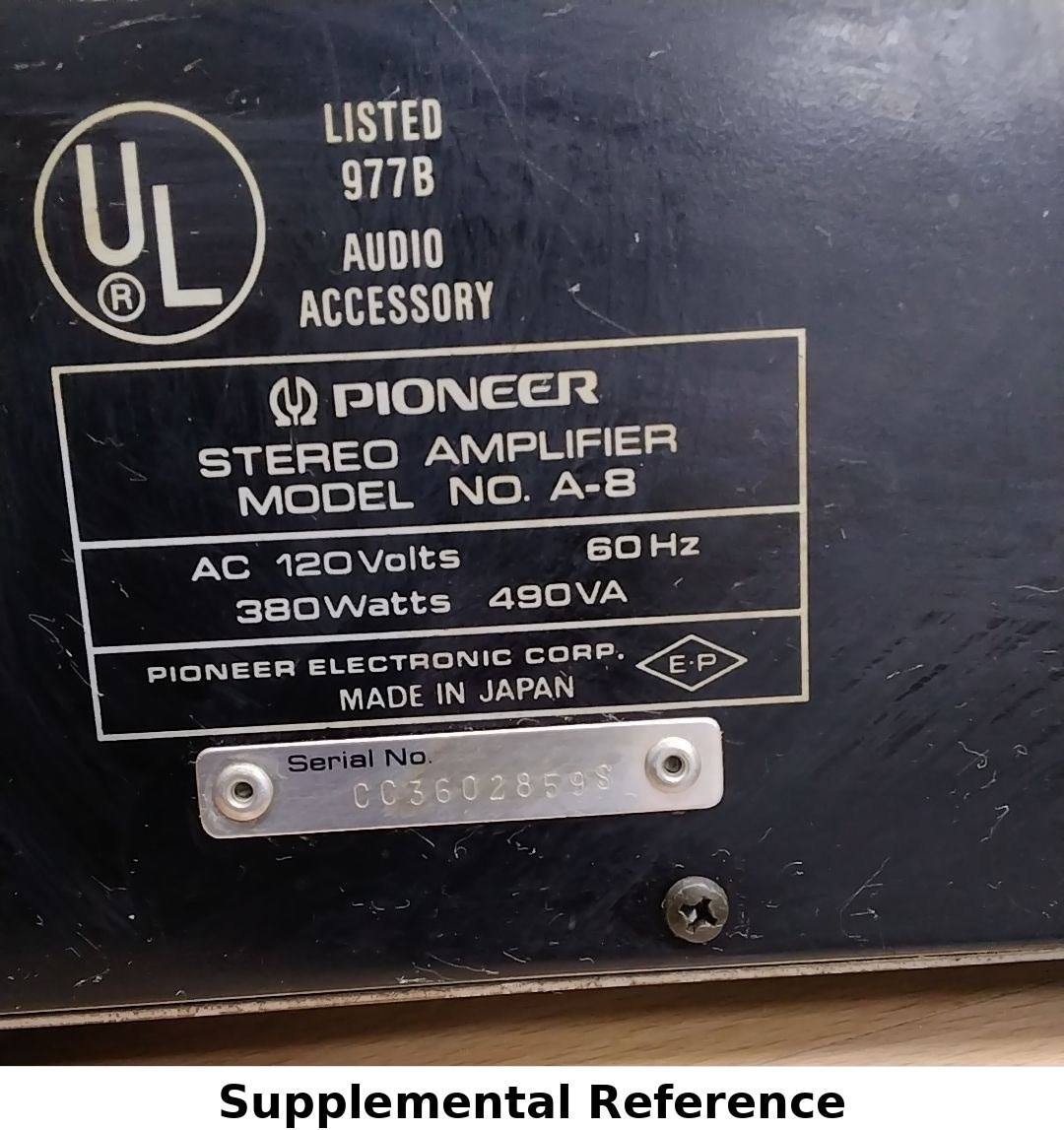

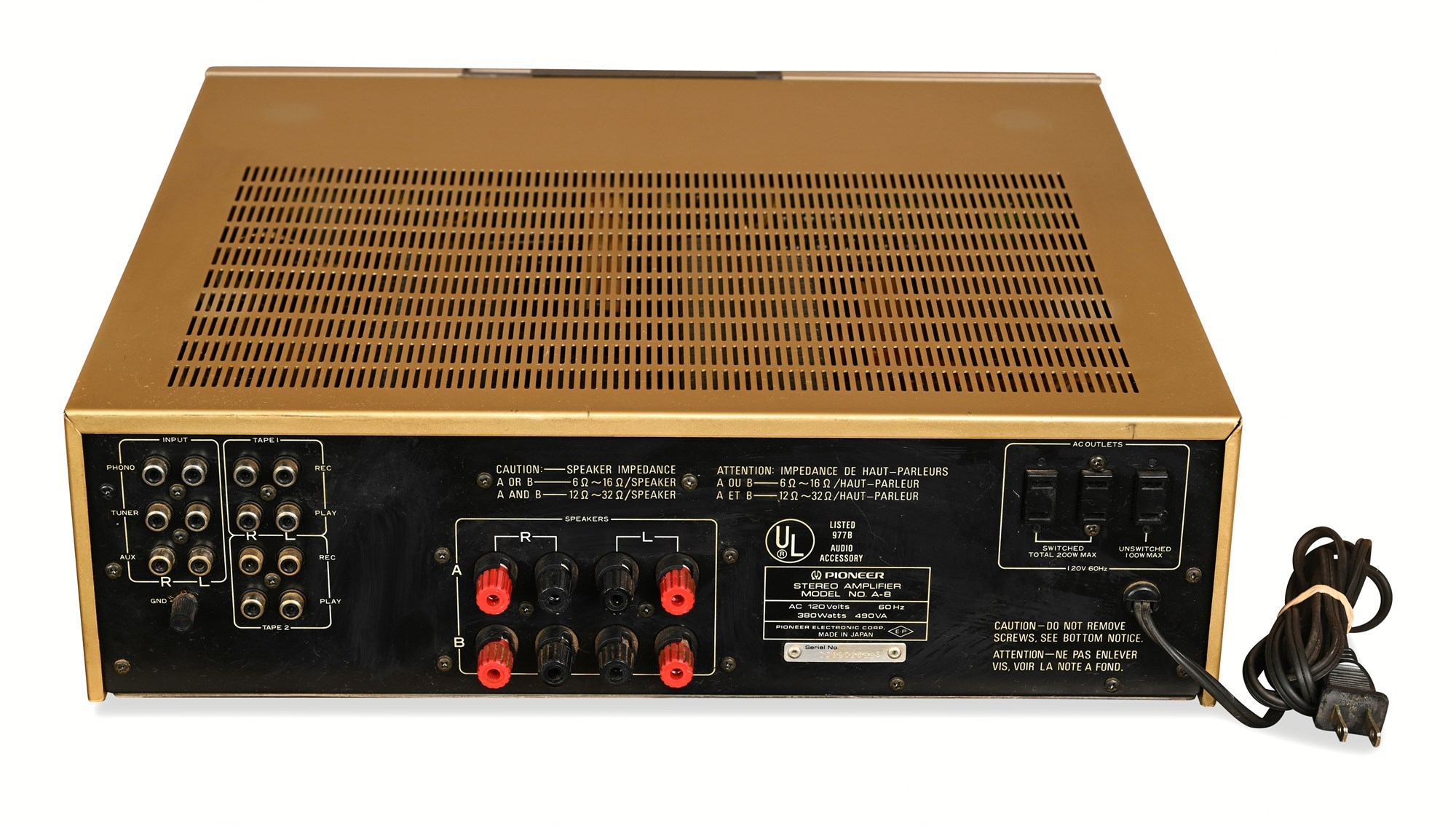

The center fascia groups a signal-flow diagram above a stepped Output Power LED meter calibrated from 0.001W to 100W at 8Ω, with Protection and Muting status indicators below. Rear connectivity is comprehensive: Phono (with ground post), Tuner, and Aux inputs; two full tape loops with independent Rec/Play switching; A/B speaker binding posts; and switched and unswitched AC convenience outlets. Pioneer rated the A-8 at 80 watts per channel continuous (8Ω, 20Hz–20kHz), with a total harmonic distortion spec of 0.005% — figures that put it near the top of the integrated amplifier class at its 1981 introduction. The chassis is marked Model No. A-8, Pioneer Electronic Corp., Made in Japan, serial CC3602859S.
CONDITION

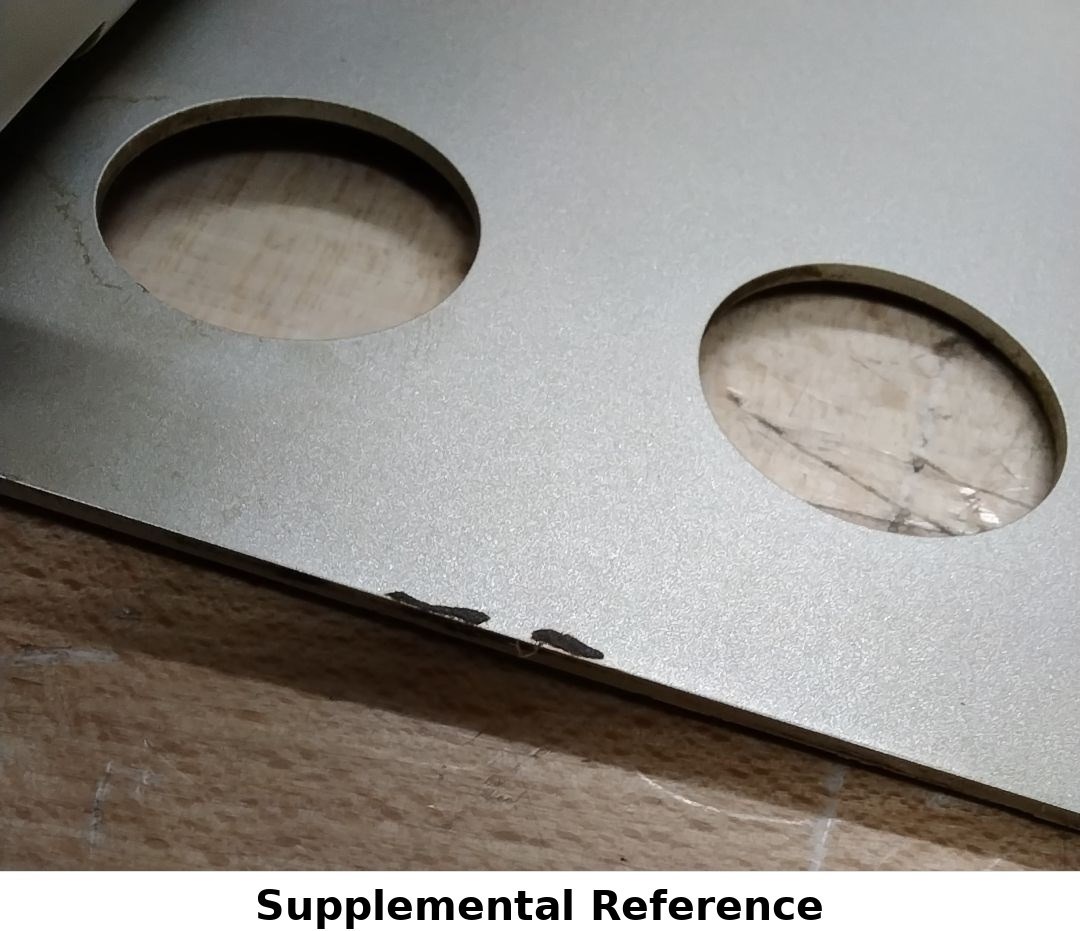

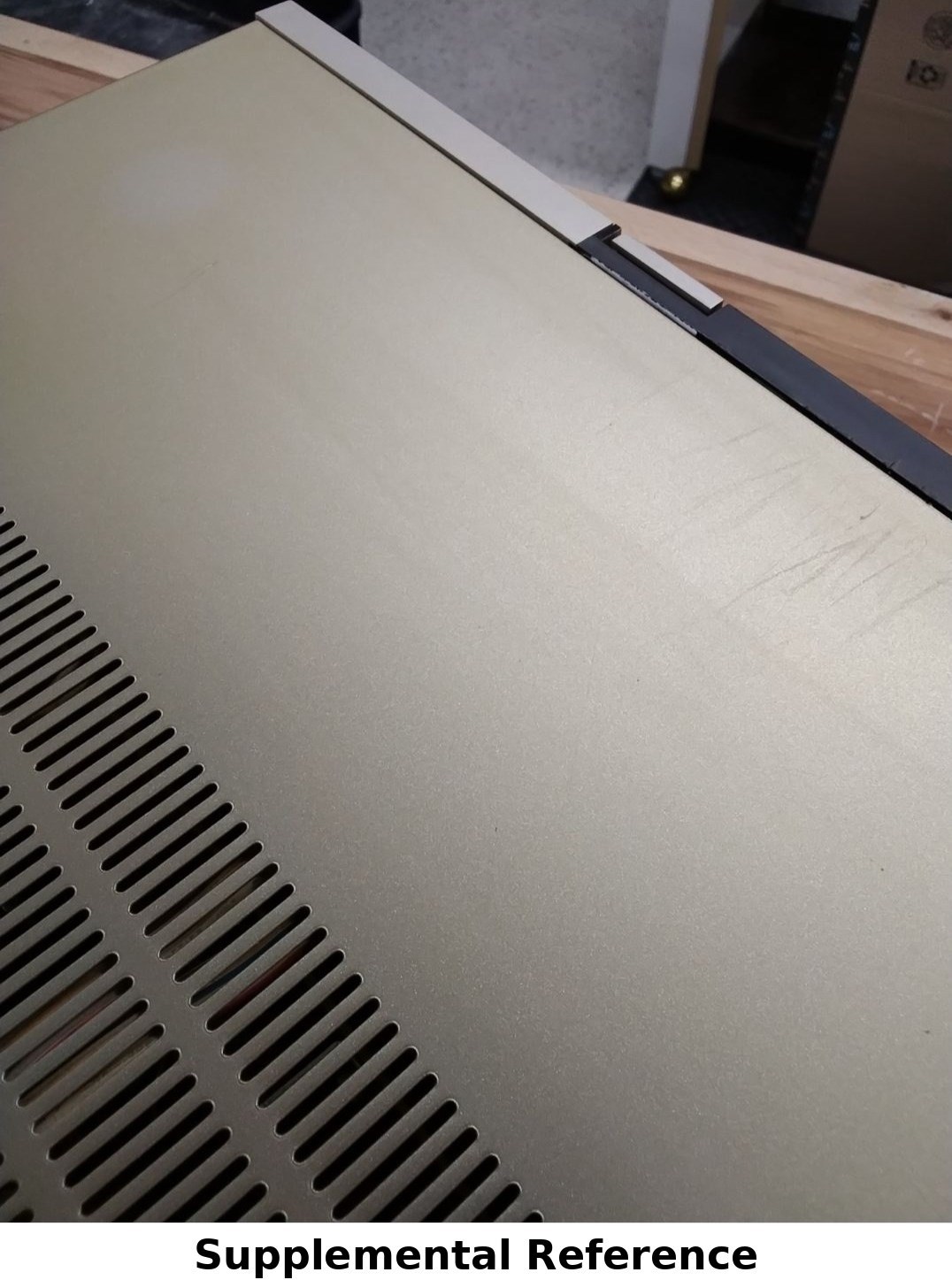

Good and fully functional. Tested; powers on and all functions operate. Fading and light scuffing to the champagne-gold top cover, with scratching to the hinged flip-down door panel; no remarkable damage otherwise. Original two-prong power cord present.
DIMENSIONS / SPECIFICATIONS
- Model: A-8
- Serial No.: CC3602859S
- Power Output: 80W per channel continuous (8Ω, 20Hz–20kHz)
- THD: 0.005%
- Frequency Response: 5Hz–100kHz (+0/−3dB, Line Straight)
- Signal-to-Noise Ratio: 100dB (Line); 80dB (MM Phono)
- Phono Input: MM (2.5mV / 47kΩ) and MC (0.15mV; High/Low loading)
- Damping Factor: 80 (8Ω, 1kHz)
- Speaker Impedance: 6–16Ω per speaker (A or B); 12–32Ω (A and B)
- Inputs: Phono (MM/MC), Tuner, Aux, Tape 1, Tape 2
- AC Outlets: Switched (200W max total), Unswitched (100W max)
- AC Power: 120V, 60Hz, 380W / 490VA
- Dimensions: 6-5/16" H × 17-5/16" W × 14-9/16" D
- Weight: 26.5 lbs.
- UL Listed 977B Audio Accessory
- Made in Japan
